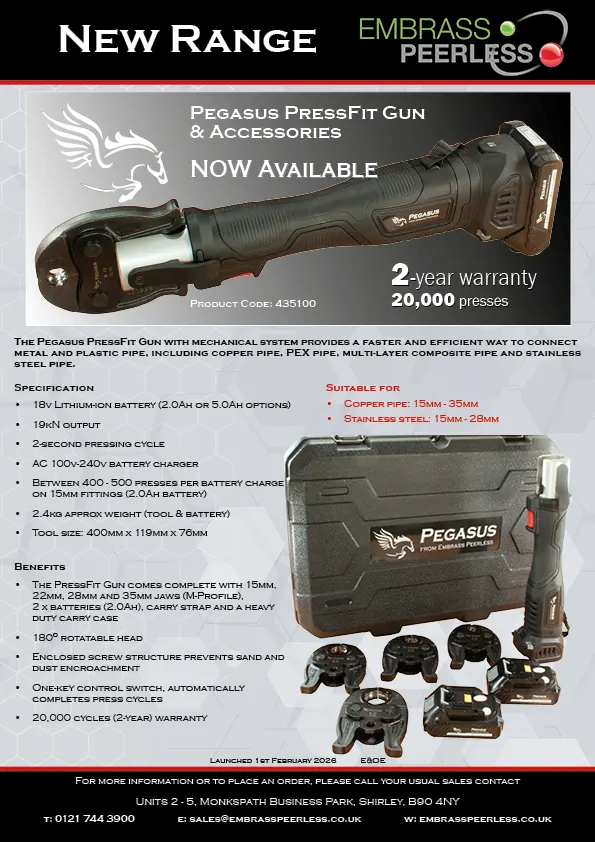

Pegasus PressFit Gun

The Pegasus PressFit Gun with mechanical system provides a faster and efficient way to connect metal and plastic pipe, including copper pipe, PEX pipe, multi-layer composite pipe and stainless steel pipe.

Suitable for

• Copper pipe: 15mm - 35mm
• Stainless steel: 15mm - 28mm

Specification

• 18v Lithium-ion battery (2.0Ah or 5.0Ah options)
• 19kN output
• 2-second pressing cycle
• AC 100v-240v battery charger
• Between 400 - 500 presses per battery charge on 15mm fittings (2.0Ah battery)
• 2.4kg approx weight (tool & battery)
• Tool size: 400mm x 119mm x 76mm

Benefits

• The PressFit Gun comes complete with 15mm, 22mm, 28mm and 35mm jaws (M-Profile), 2 x batteries (2.0Ah), carry strap and a heavy duty carry case
• 180o rotatable head
• Enclosed screw structure prevents sand and dust encroachment
• One-key control switch, automatically completes press cycles
• 20,000 cycles (2-year) warranty
